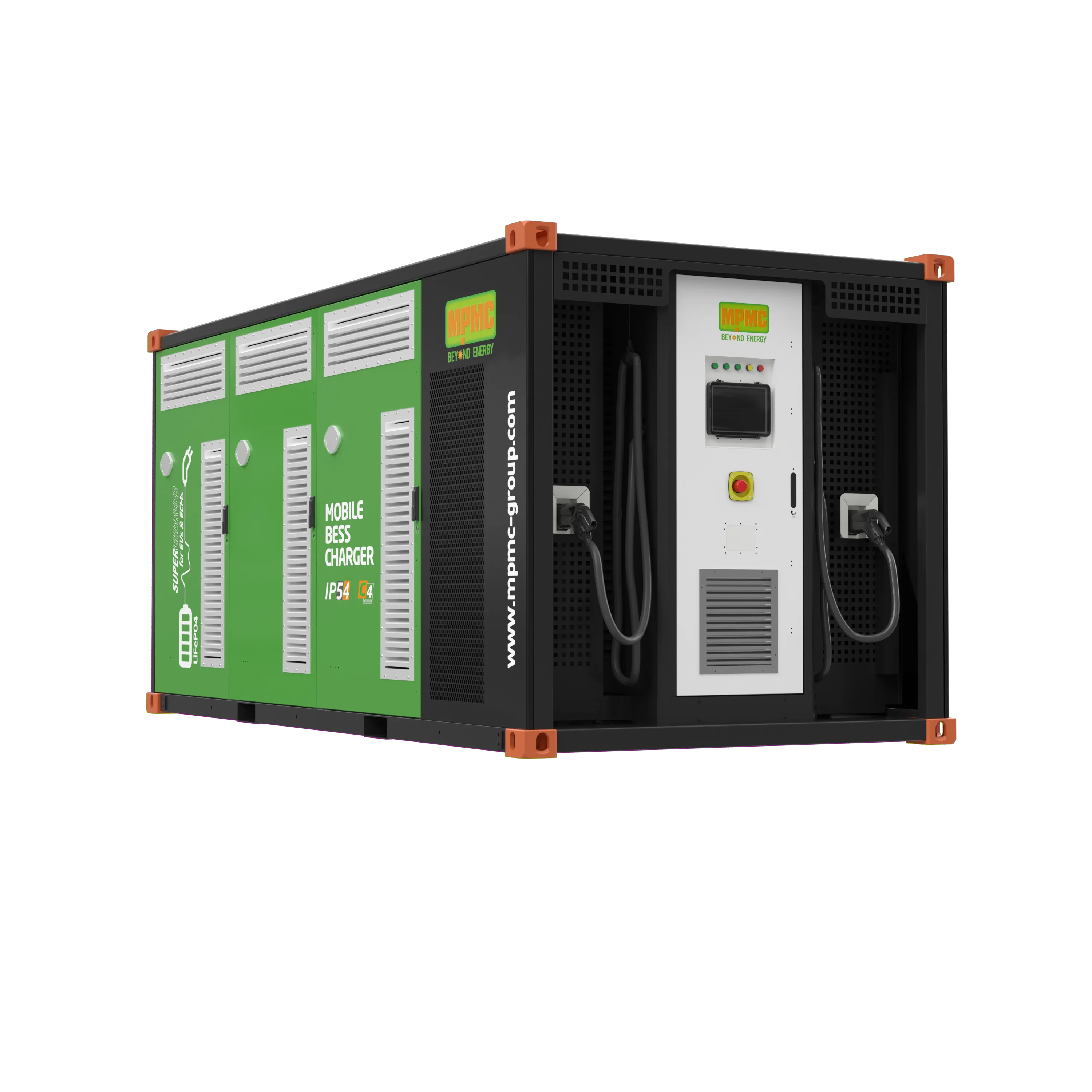

BCH-800kW-600kWh Mobile BESS Charger
BCH® is a new range of charging solutions for electric drive equipment and electric vehicles. The product is designed based on mobile scenarios, fully considering the issues of convenience and security. Becoming a brand new choice for power transportation.
.webp)
.webp?x-oss-process=image/resize,w_100/quality,q_100)
.webp?x-oss-process=image/resize,w_100/quality,q_100)
.webp?x-oss-process=image/resize,w_100/quality,q_100)
.webp)
BCH® is a new range of charging solutions for electric drive equipment and electic vehicles.The product is designed based on mobile scenanios,fully considening the issues of convenience and security.Becoming a brand new choice for power transportation.
· Integrated installation,convenient storage and transportation;
· High return on investment and short payback period;
· Simple operation and easy maintenance;
· Power and Capacity can be expanded,meet different user needs;
| General Information | AC Side | DC Side | |
|---|---|---|---|
| Rated Output Power@25℃ | 250kVA | 600kW | |
| Rated Output Voltage | 380V@50/60Hz,3ph.4W (400V & 415V available) |
DC 50V~1000V | |
| Rated Battery Storage Capacity | 610 kWh | ||
| Output | Terminals | N/A | CCS-2 350A Gun * 2 sets |
| Sockets | 400A 5P PowerLock*1 set; CEE 125A/5P*1 set; CEE 63A/5P*1 set; CEE 32A/5P*1 set: CEE 16A/3P*3 sets |
N/A | |
| Input | Sockets | 400A 5P PowerLock*1 set for AC Power; 400A 5P PowerLock*1 set for SOLAR |
CCS-2 400A*1 set |
| Protection Class | IP54 | ||
| Loading Dimension(W*D*H) | 4800*2250*2250mm | ||
| Net.Weight | 15000 kg | ||
| Loading Capacity | 1 units@20'GP | ||
| Discharge Temperature Range | -20~50℃(> 45 ℃ derating) | ||
| Max Altitude | 3000m(> 2000m derating) | ||
| Certificate | IEC 61000,IEC 62477,UN38.3 | ||
.webp)
