SPK Mobile Solar Array



SPK® Solar power container uses customized containers that meet maritime standards as carriers, and is equipped with foldable frames,rail and rack systems, inverters, and other equipment inside; it has the advantages of modularity, mobility, rapid deployment, simple maintenance, and is suitable for use in areas with electricity shortages and inconvenient electricity generation after wars and disasters, remote areas, islands, oil and gas field exploitation areas, Belt and Road infrastructure areas, etc.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

Design Standards






SPK® Solar power container uses customized containers that meet maritime standards as carriers, and is equipped with foldable frames,rail and rack systems, inverters, and other equipment inside; it has the advantages of modularity, mobility, rapid deployment, simple maintenance, and is suitable for use in areas with electricity shortages and inconvenient electricity generation after wars and disasters, remote areas, islands, oil and gas field exploitation areas, Belt and Road infrastructure areas, etc.





Benefits



Movable

Flexible and easy to move

Plug & play

Modular system , easy to install

Low cost

Reduction of diesel consumption

Expandable

The system can be expanded as required

Renewable

Green and environmentally friendly energy





Certification



View
  • Top View
  • Front View
  • Side View





Product Type Spectrum Table

MODEL Specification Dimensions
Panel
Power
Panel Type String
Voltage(Voc)
String
Qty.
Total
Array Power
Expansion Method Layout Loading Loading Qty. Expand Net.
weight (kG)
Wp Vdc kWp L*W*H(mm) 20GP 40HC L*W*H(mm)
SPK-10 480 TOPCon 897 1 10.08 Manually expanded &
Ground installed
2250*1150
*1250
5 20 2150*24150
*1250
2500
299 3
129 7

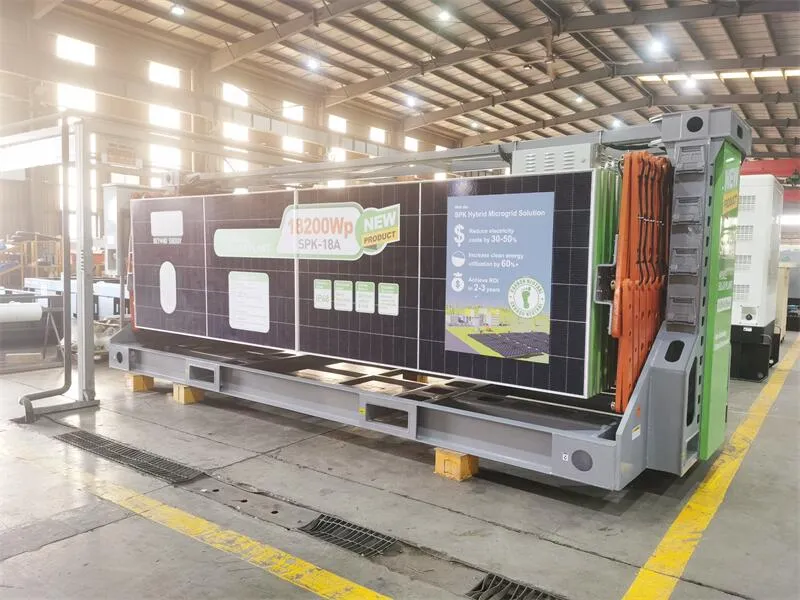

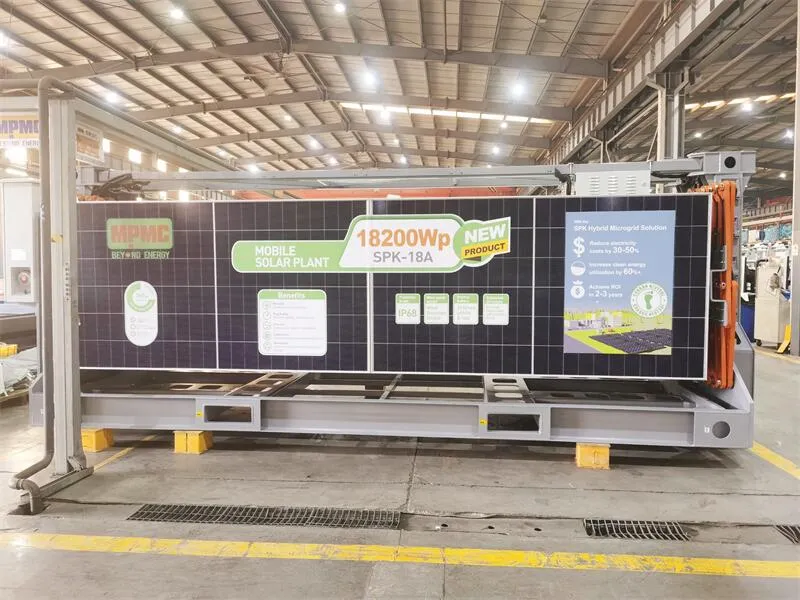

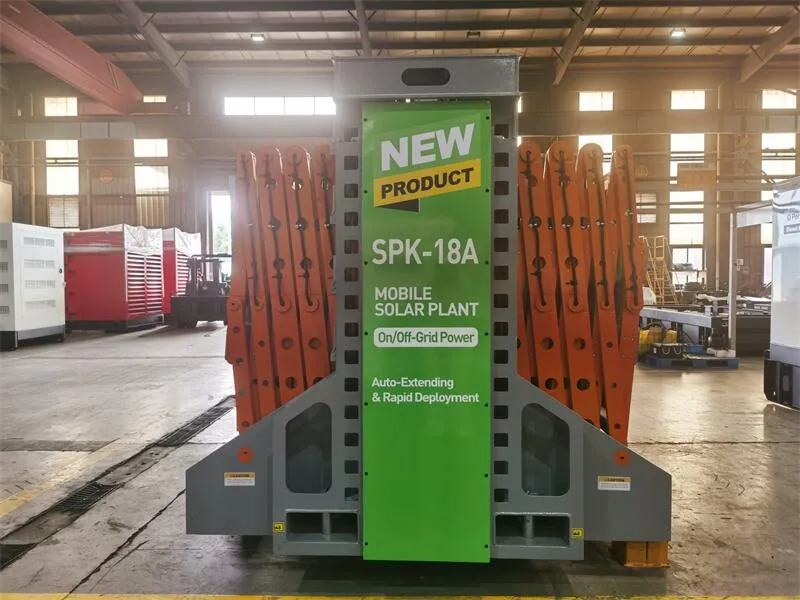

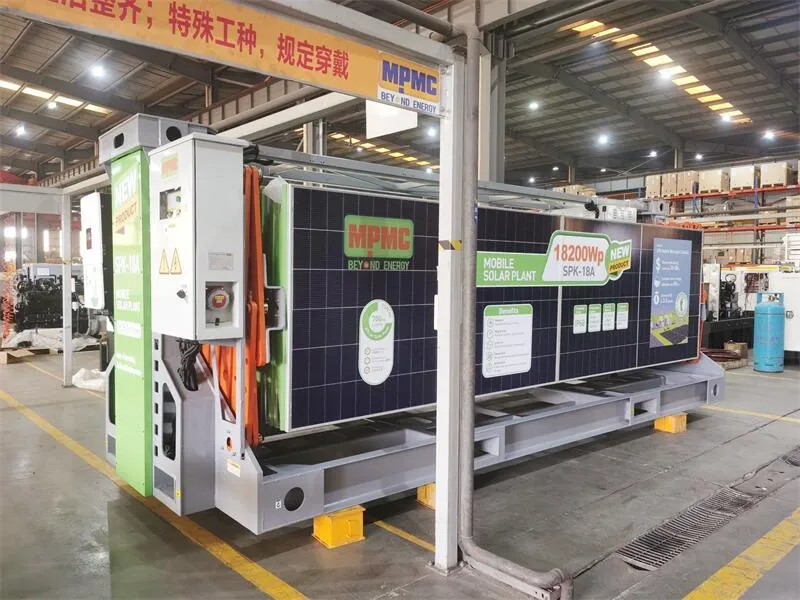

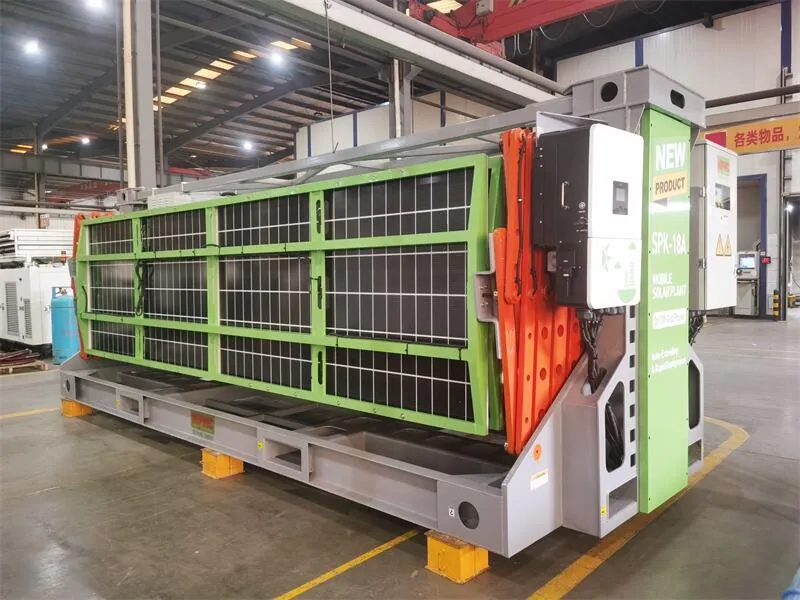

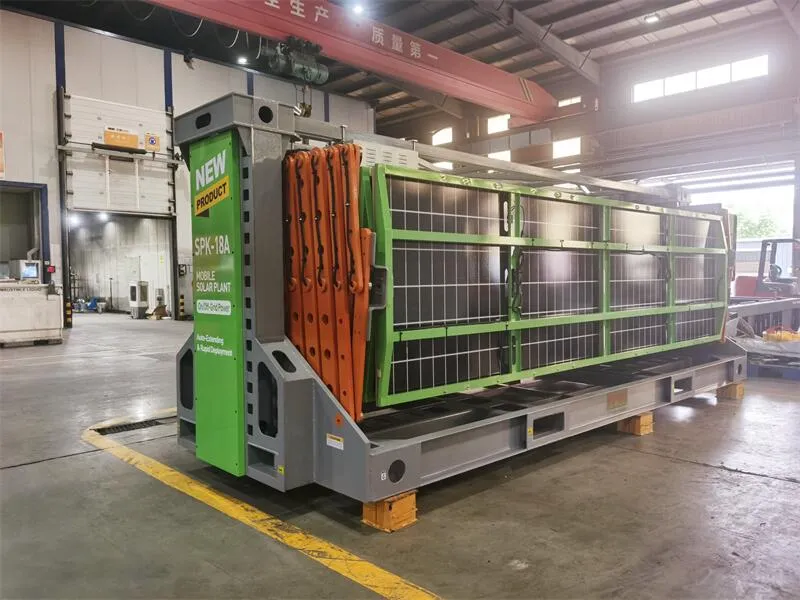

SPK-18A 700 TOPCon 652 2 18.2 Automatic expanded &
Ground installed
5824*2250
*2120
1 2 5824*18000
*2120
7500
101 13
SPK-20 595 TOPCon 894 2 20.23 Manually expanded &
Ground installed
2900*2260
*2200
2 4 46000*2400
*2200
5000
106 17
SPK-100 595 TOPCon 842 11 104.7 Manually expanded &
Ground installed
20HQ N/A 2 104000*6000
*2900
15000
579 16
421 22
SPK-160 480 TOPCon 940 16 169 Manually expanded &
Ground installed
40HQ N/A 1 93000*12192
*2900
25000
684 22
342 44

Remarks:

1.The MC4 connector with diodie is standard with solar panel. The PV inverter is option;

2.STC for solar panel:Light intensity≥1000 W/㎡,Temperature of the PV panel ≤25℃,Atmospheric quality≤1.5;

3.All data based on STC's data of the solar panel;

4.The forklift and lifting point is standard.
