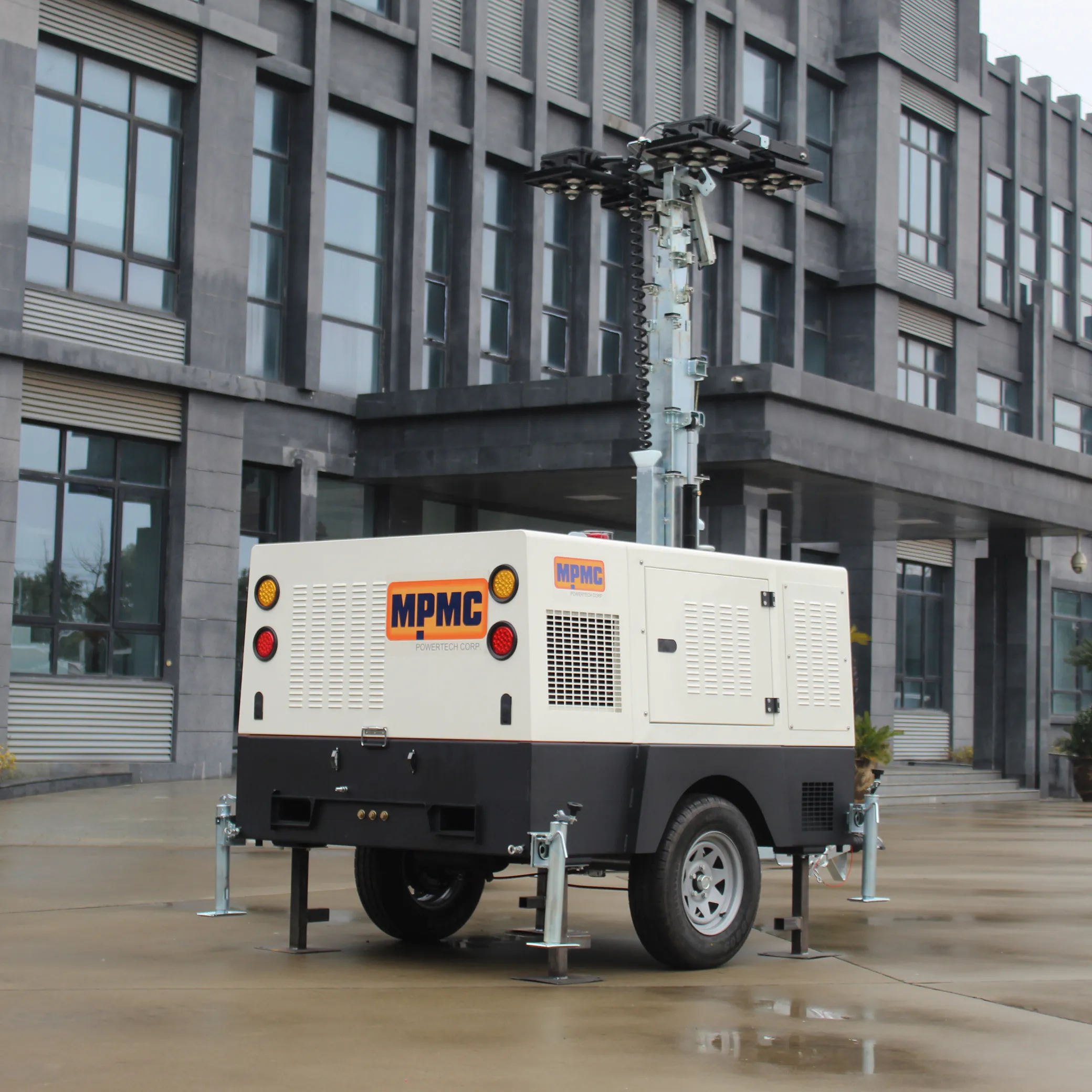

HBL Series Hybrid Power Lighting Tower 600W
The HBL Series Hybrid Power Lighting Tower is equipped with 4 x 150W LED lamps .
1.Environment friendly and resource saving
2.Strong structure and easy operation
3.More than 15 hours lighting time by storage energy
4.Silent lighting at work by LFP batteries
5.BMS for LFP batteries protection
6.Auto control lights at day and nights
MPMC mobile light towers focus on improving product reliability and durability by improving fuel consumption efficiency; lowering operating costs and maintenance costs.
● Less fuel consumption, long run time
● Auto control system
● High efficiency
● Sturdy and durable
● Max height 9m
● Bunded base & standard canopy
● 1800kg trailer with overrun and parking brake
● Standard lifting lug
● Hydraulic power pack
● Smart control system
● Heavy-duty stabilizer legs
● Emergency stop button
|
General |
|
|
Rated Voltage |
DC48 V |
|
Rated Genset Power |
6.0 kW |
|
Environmental Temperature |
-10 °C ~ 50 °C |
|
Trailer Attachment |
Ball |
|
Max Towing Speed |
80 km/h |
|
Wind Speed Rating |
100 km/h |
|
Tire Rim Size |
14” |
|
Dimensions & Weight |
|
|
Dimensions (Towing) |
3454x1756x2529mm (L x W x H) |
|
Dimensions (Deployed) |
3454x2456x9552mm (L x W x H) |
|
Dimensions (Stowed) |
2270x2193x2529mm (L x W x H) |
|
Container Load Capacity |
7 units / 40HC |
|
Weight |
1550 kg |
|
Engine & Alternator |
|
|
Engine Model |
Kubota Z482-ET03 |
|
Emission |
China T3 (Equal to EU Stage IIIA) |
|
Alternator Model |
MD6.0-48 |
|
Rated Speed |
3000 rpm |
|
Battery Energy Storage System |
|
|
Type |
LFP (LiFePO4) |
|
Rated capacity |
16.07 kWh |
|
Control system |
BMS |
|
Cycle Life |
6000 |
|
Discharge of Depth |
90% |
|
Battery Discharging Time |
12 h |
|
Battery Charging Time |
3 h（option） |
|
Fuel Tank |
|
|
Capacity |
100 L |
|
Total Running Time |
360 h |
|
Lighting & Mast |
|
|
Light type |
4 x 150 W LED |
|
Lumens |
120000 |
|
Mast Raise Operation |
Hydraulic |
|
Mast Rotation |
355° Manual Operation |
|
Light Tilt |
Electrical |
|
Cloud (Option) |
|
|
Type |
GPS/GPRS/4G |
-
User-friendly operating interface
-
Hangers on the top.
-
Sound alarm and warning lights for possible false operation.
-
Powerful hydraulic lifting system
-
Individual breaker switch for each function assembly.
-
Separate lockable, weather-resistant powder-coated doors.
-
Robust On /Off road traliers available.
-
Robust On /Off road traliers available.
